Depict: Search & Merchandising never edits your theme’s code by hand. Everything it shows on the storefront comes from its theme app extension: a set of app embeds and an app block you switch on in the Shopify theme editor, plus one theme section for recommendations. This page lists each part, what it does, and the exact steps to add it.
App embeds and app blocks live on the theme, so they follow it: if you publish a new theme, repeat the steps below on that theme. Nothing changes on the storefront until you click Save in the theme editor.

​
What the extension contains

The setup guides inside the app (on the Search and Recommendations pages) have a button for each step that opens the theme editor with that part already in place, so you only check the preview and save. For search, the work happens on an unpublished preview theme the app creates for you, so your live theme is untouched until you publish. The steps below are the same ones, written out with the by-hand route for each.
One editor tab at a time. A deep link stages its change until you click Save; a second editor opened before that starts from the saved theme and, when saved, undoes the first. Save and close before the next step.

​
Depict Brand Features (automatic)

This app embed is switched on for you when the app installs on a theme. It carries the collection grids, content cards and product-card settings you configure in the app. To check it, or switch it back on after it was turned off:
1

Open the theme editor

Shopify admin → Online Store → Themes → Customize on the theme you want to check.
2

Open App embeds

In the left panel click the App embeds icon (the puzzle piece at the bottom).
3

Switch on Depict Brand Features

Find Depict Brand Features in the list and make sure its toggle is on, then click Save.
A direct link that opens the editor with the embed switched on, ready to save (replace YOUR-STORE with your store’s handle):
Before the embed and the button, the app prepares a copy of your theme so the Depict search button can replace the theme’s built-in search, and creates that copy as an unpublished preview theme. This is the first theme step of the Search setup guide in the app.
1

Enable search

In the app, go to Search and click Enable search in the setup guide. Depict reads your live theme and prepares the header for the search button in a copy; the live theme is never touched. This usually takes a few minutes and can take up to 20; you can leave the page.
2

Create the preview theme

When the guide says your theme is prepared, click Create preview theme. Depict duplicates your live theme with the prepared files into an unpublished theme, usually within a few minutes.
3

Continue with the embed and the button

The next two steps open the theme editor on that preview theme. You publish it from Online Store → Themes when it looks right; until then shoppers see your live theme as before.
If your theme changes after preparation, the guide shows Re-prepare now. If your store already runs Depict search through the separate Search by Depict app, the guide offers Contact us instead, and we move it over for you.

​
Depict Search Settings and Depict Search Styling

Search needs the Depict Search Settings app embed switched on: it holds the search template (Takeover, Drawer or Quick panel, chosen on the app’s Search page), the layout of the results and the behaviour of the search modal. Depict Search Styling is optional and controls fonts and colours. These are the same four steps the app’s Search setup guide shows under Switch on the app embed.
1

Open the theme editor with the embed switched on

In the app, go to Search and click Switch on the app embed. The theme editor opens on your preview theme with Depict Search Settings switched on under App embeds.By hand: Online Store → Themes, Customize on the preview theme, click the App embeds icon in the left panel, and switch on Depict Search Settings.
2

Optional: switch on Depict Search Styling

In the same App embeds list, switch on Depict Search Styling to match the search modal to your theme’s fonts and colours.
3

Save, then close the editor tab

Click Save in the top right, then close the tab. Save before the next step: its button opens a fresh editor from the saved theme, so an unsaved embed would be lost.
4

Back in the app, click It's on

The guide moves on to the search button.

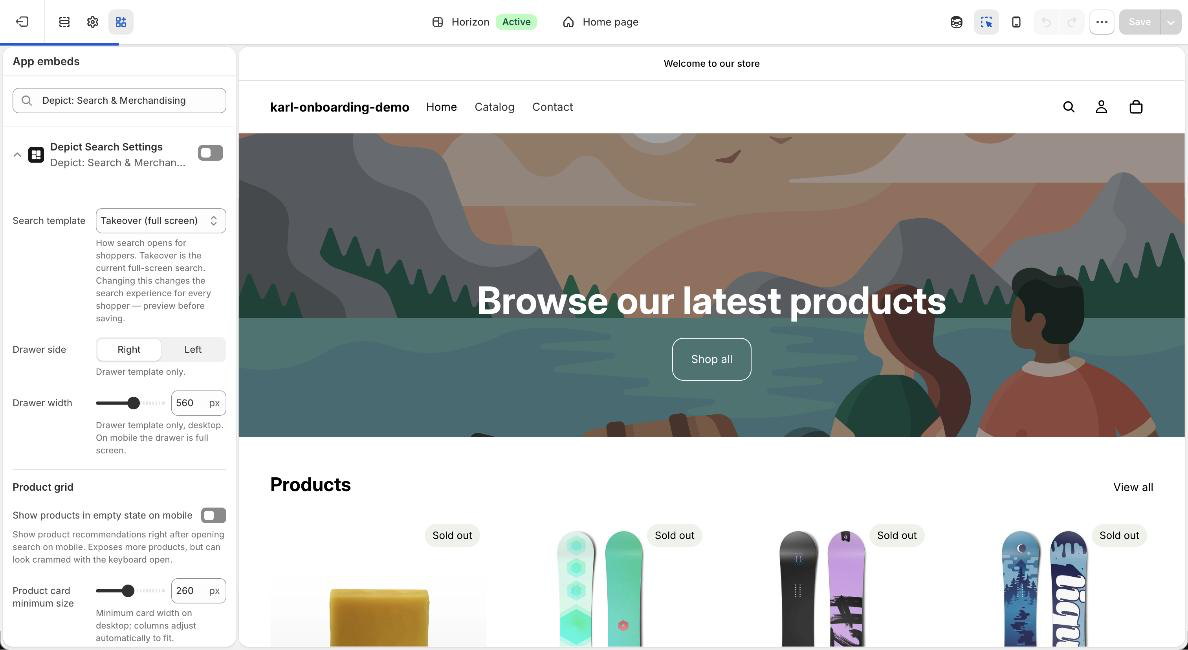

The theme editor's App embeds panel, filtered to Depict: Search & Merchandising, with Depict Search Settings expanded and its settings shown

The App embeds panel with Depict Search Settings switched on, as the deep link opens it

Direct links (replace YOUR-STORE):
The settings of both embeds (except the image pickers, which stay in the theme editor) can also be changed from the app’s Search → Display page, which writes to the same embeds. See Search customization for what each setting does.

​
Depict Search Button

The app block that shoppers click to open search. It belongs in your header, in the place of the theme’s own search icon. The app’s Search setup guide offers this step once the embed step above is ticked, so the two editor sessions never overlap.
1

Open the header with the block added

In the app, click Add the button to the header. The theme editor opens your preview theme’s home page with the Depict Search Button added to the header under Apps.By hand: open the theme editor on the preview theme, select the Header section in the left panel, click Add block and choose Depict Search Button under Apps.
2

Position it, and hide the theme's own search

Drag the block to where the search icon should sit, usually next to the cart icon. If the header still shows its built-in search icon, switch it off in the header section’s settings, so shoppers see one search. The block’s settings let you match the icon’s size and colour to your theme, or add a text label.
3

Save

Click Save.
4

Preview, then publish when it looks right

In the app, click Preview the store: the preview theme opens on your storefront. Check desktop and mobile and click the icon; the Depict search opens. When it looks right, publish the preview theme from Online Store → Themes.
5

Back in the app, click It's placed

The guide moves on to choosing a template.
Direct link (replace YOUR-STORE; current is the live theme, a theme id targets a preview theme):
Depict Search Button is not offered under Add block? The header section of your theme does not accept app blocks (common in older or heavily customised themes). The Search setup guide in the app includes a prompt you can hand to your developer or an AI assistant together with a duplicate of your theme; it makes the header accept app blocks and places the button. Or contact us with the theme’s name.
The block’s settings are listed under Search button settings.

​
Depict Recommendations (theme section)

Recommendations are rendered by a theme section the app installs on your theme, not by an app block, so it is added with Add section rather than Add block. The steps, the section’s settings and its troubleshooting are on the Recommendations page. The app’s Recommendations page has the same steps in its setup guide, with a button that opens the theme editor on the product template.

​
Checking what is on a theme

The app shows, per theme, whether Depict’s collection template is installed (see Onboarding). For the app embeds and the search button, the theme editor’s App embeds panel and the header section are the source of truth. On an unpublished theme, the parts you add go live when you publish that theme.

​
Removing a part

Switch an app embed off under App embeds, or remove the app block from its section, and click Save. Uninstalling the app removes its app embeds and blocks from your themes; the collection template the app installed is restored when a collection is deactivated, so your theme is never left in a broken state.
